Eco Solvent Printer

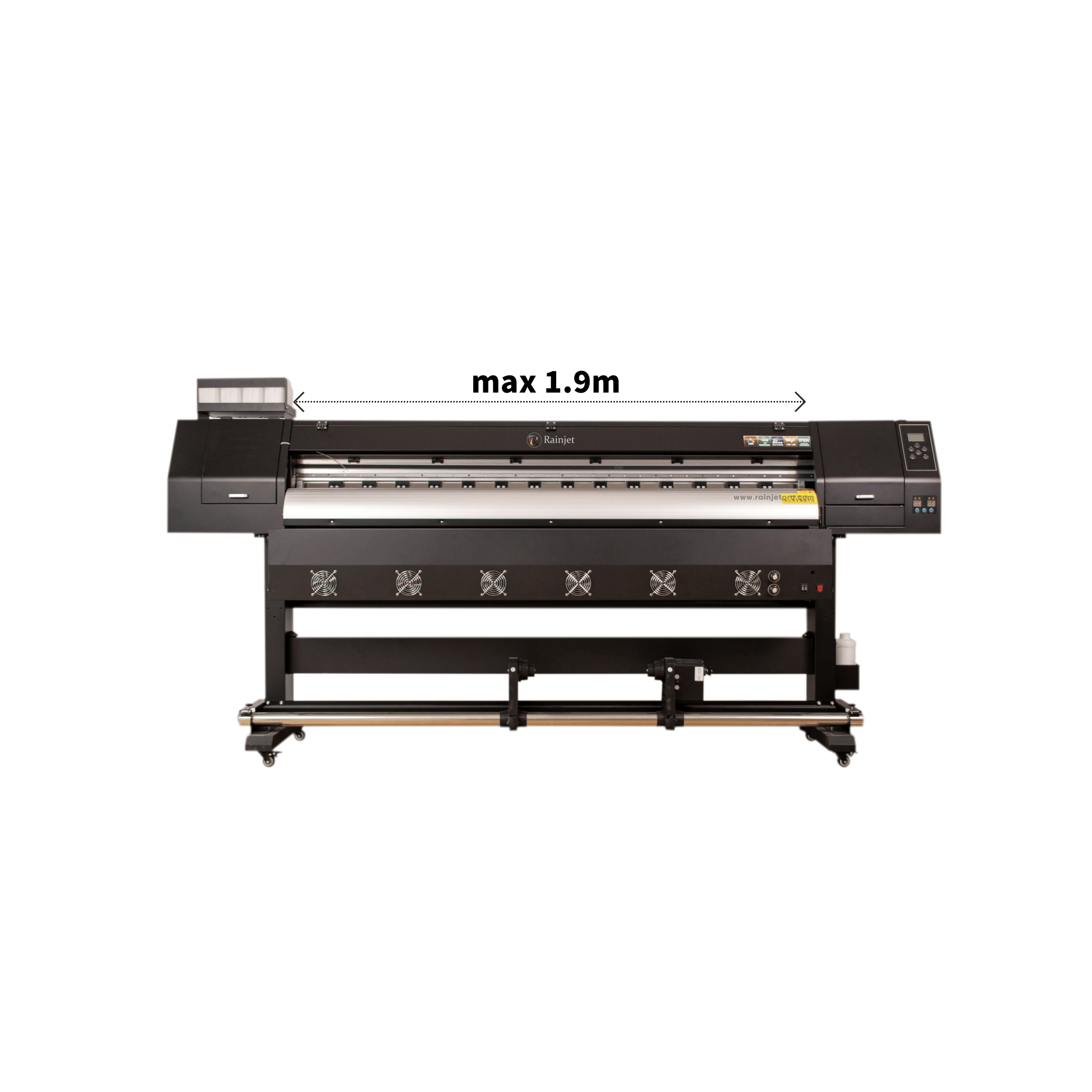

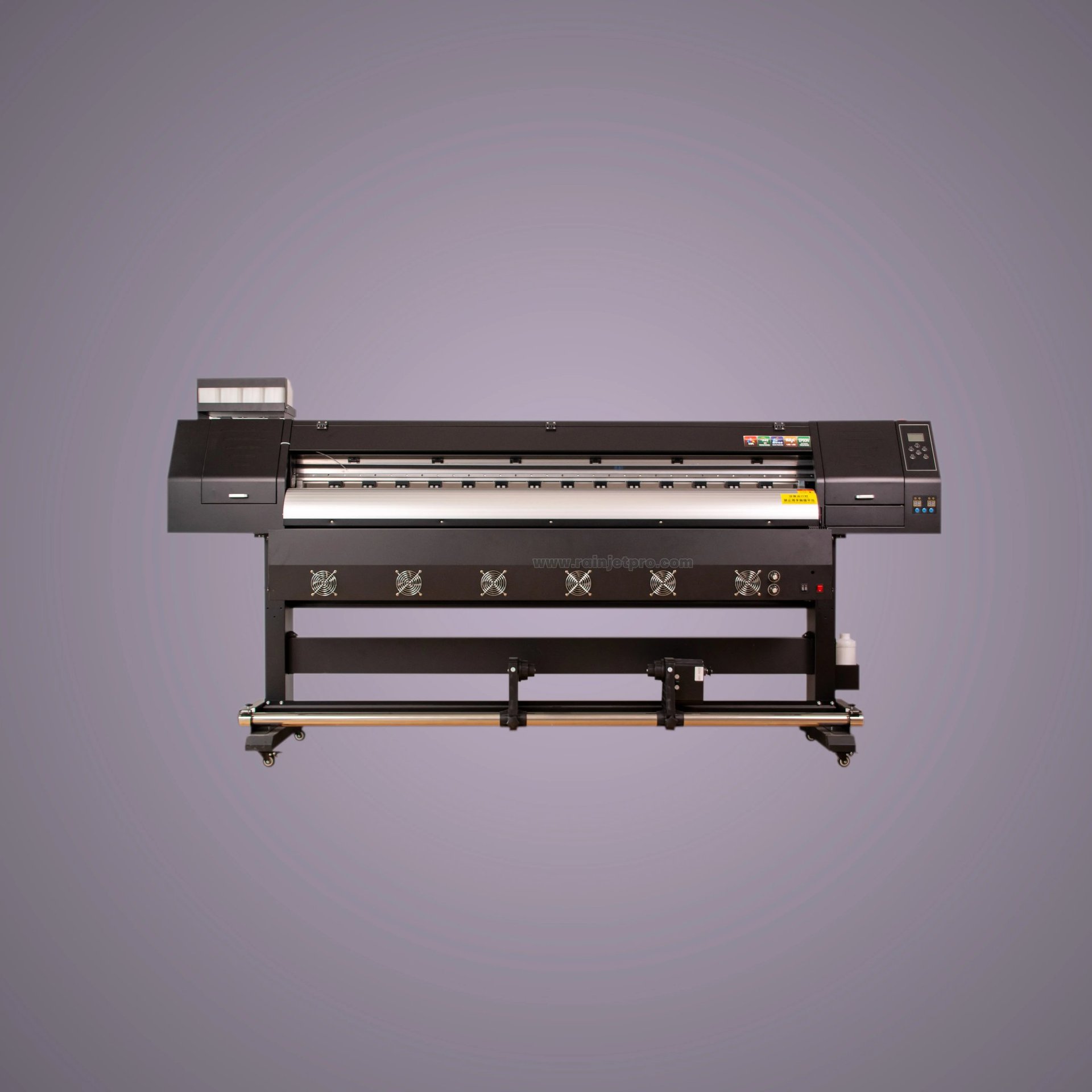

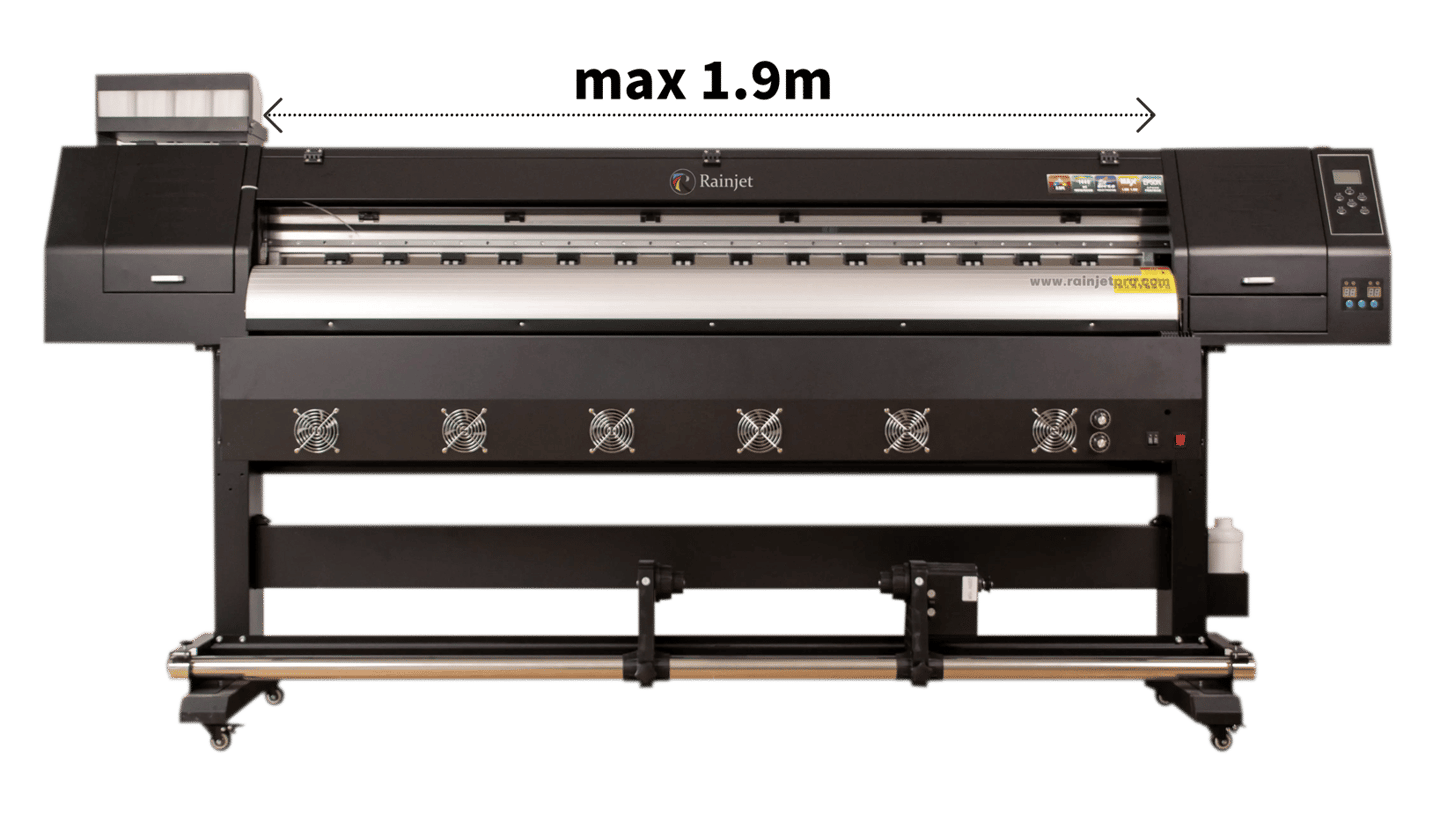

The 1.9m Proven Classic

A long-standing eco-solvent model, trusted for years of stable performance, vivid colors, and versatile media. RAINJET 190cm ECO-SOLVENT printer is the customer favorite, with larger formats up to 3.2 m available for banner and signage production. Pair with a laminator or cutter for a complete setup. Choose 1 or 2 printheads — XP600 for cost-effective runs or i3200 for faster, sharper output — simple, reliable, and proven to pay for itself while keeping your business ahead.

Specifications

The proven choice for shops that want reliable output and nonstop production.

Key Features

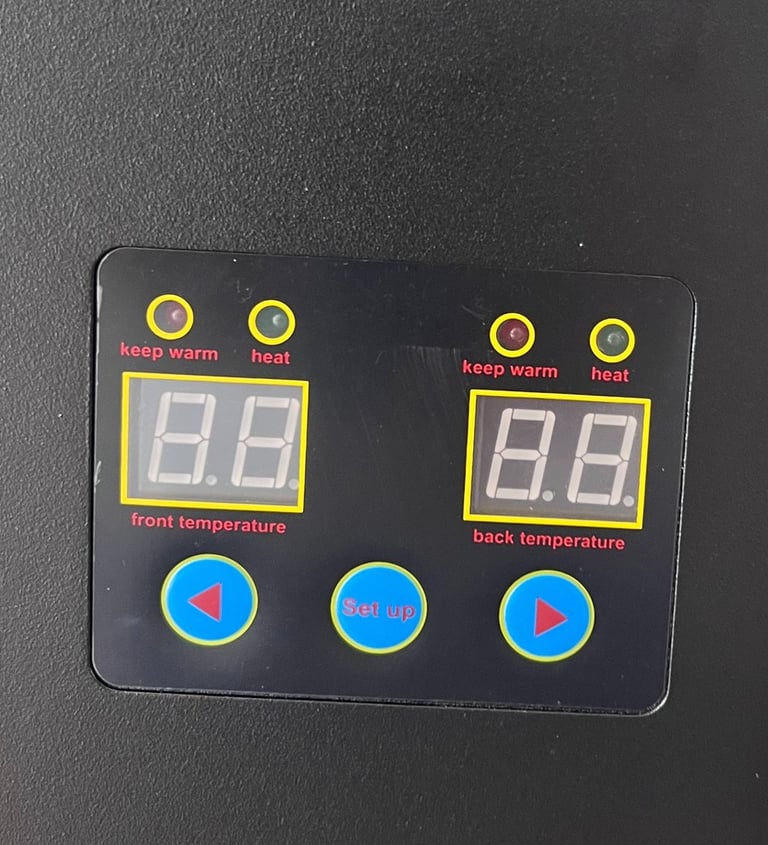

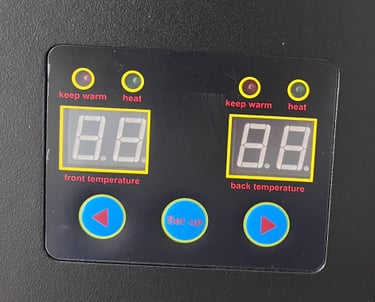

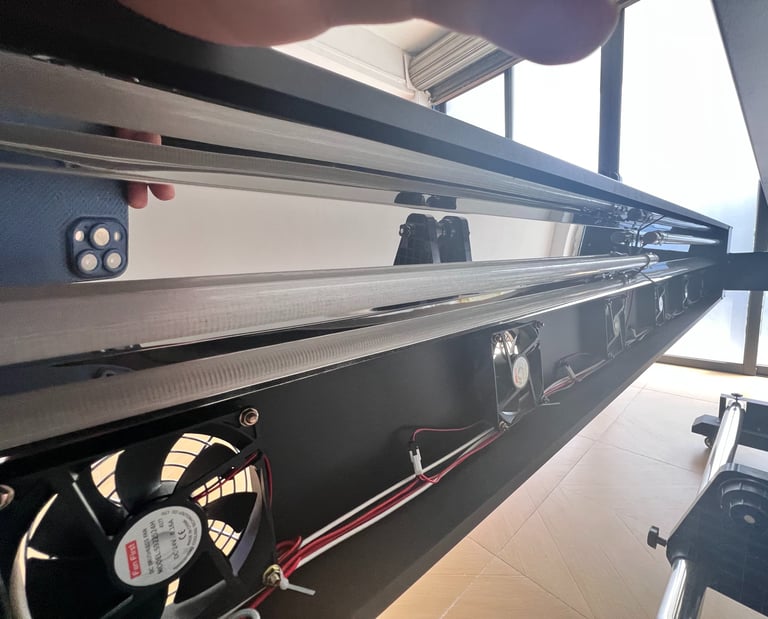

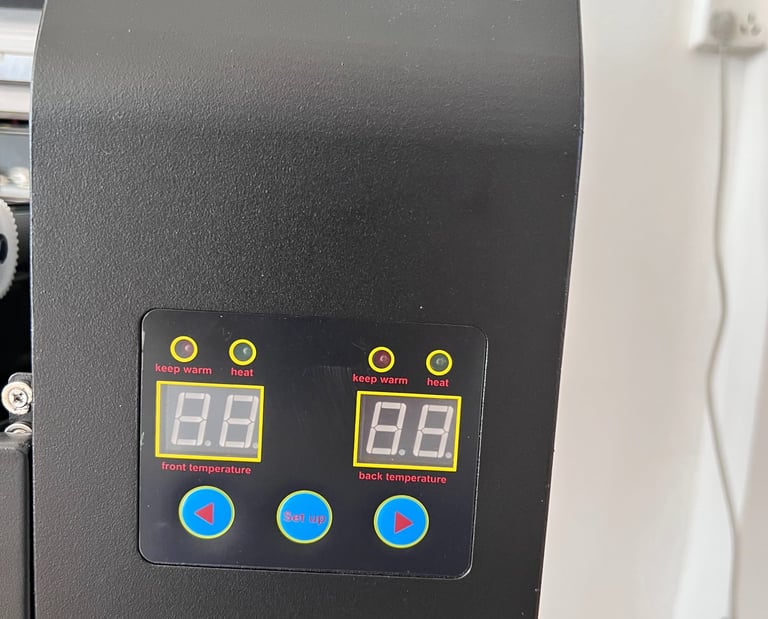

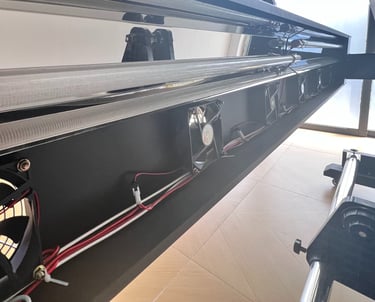

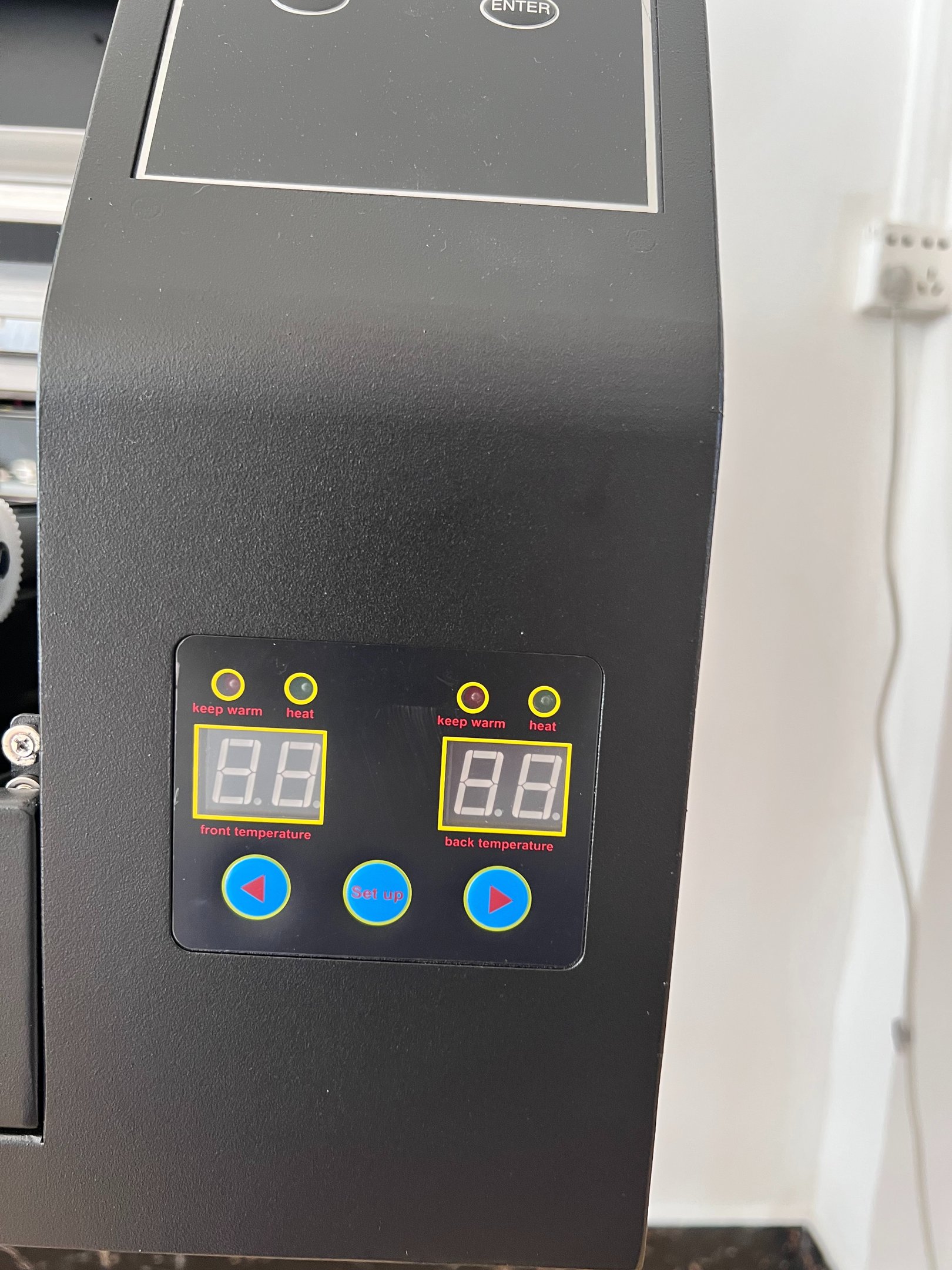

Front & Back heating for best printing jobs

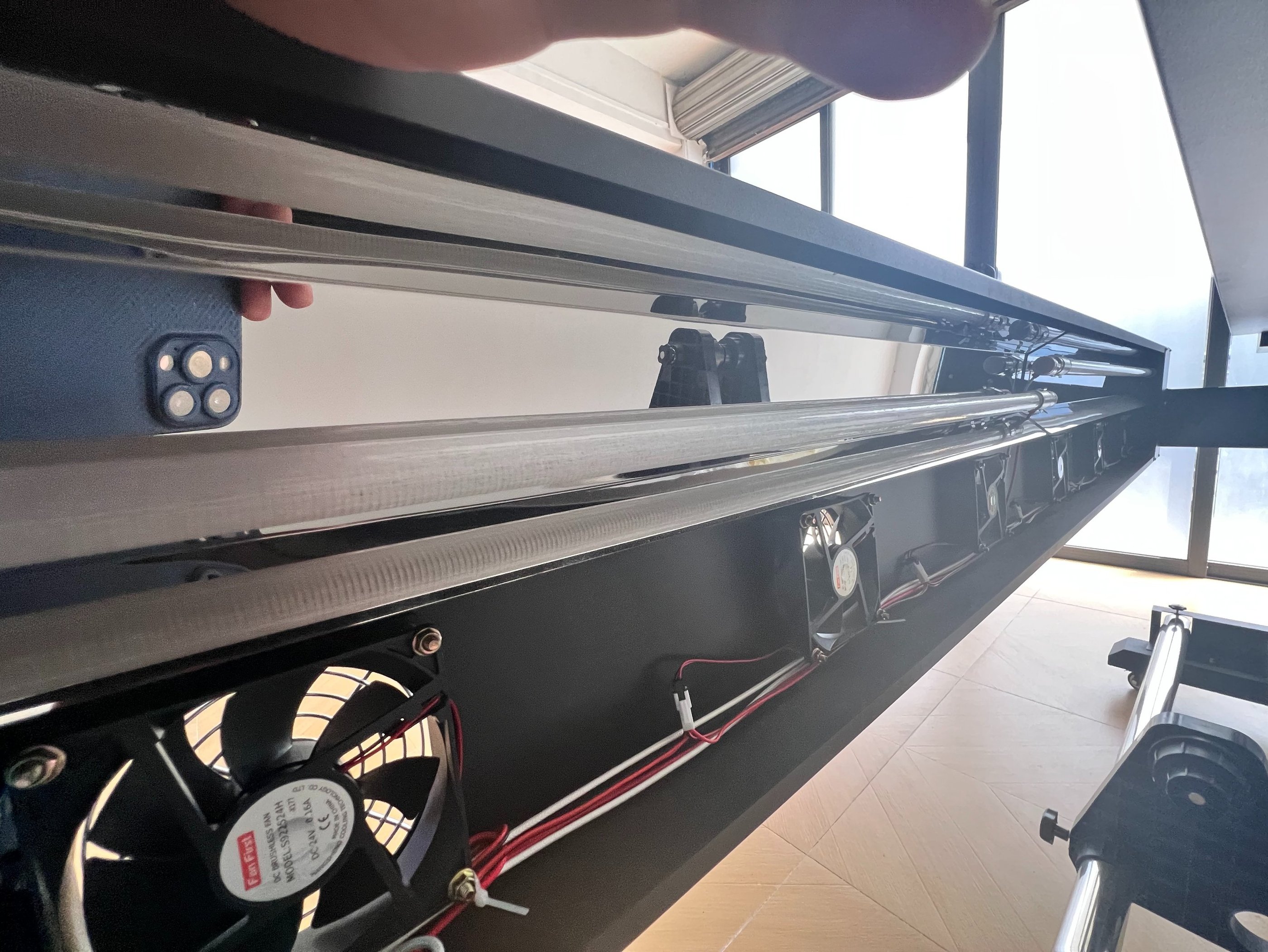

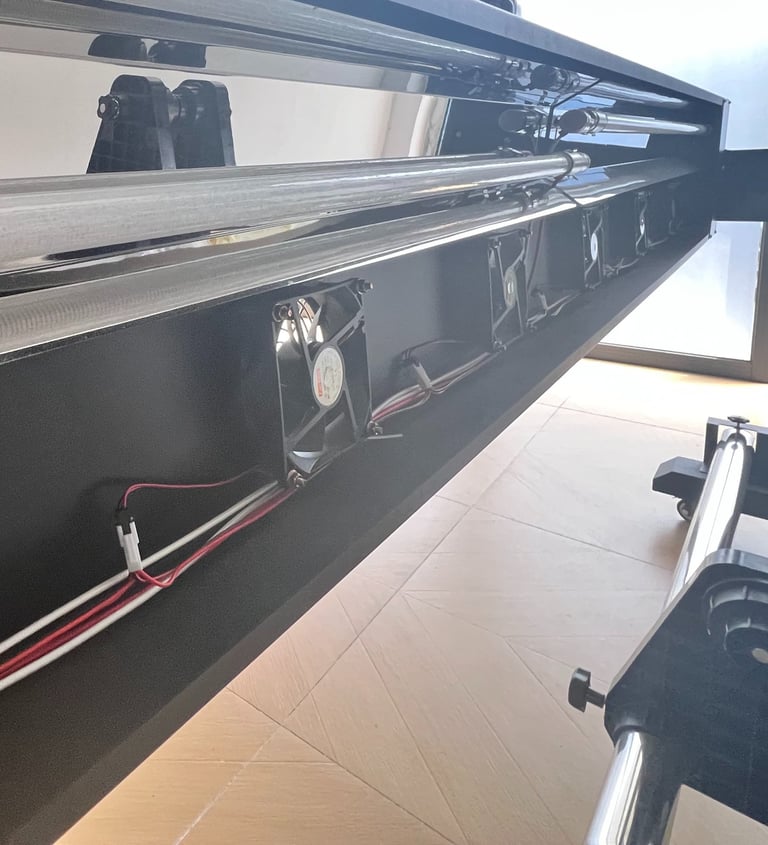

Additional Independent Heating for homogeneous output
Modular Configuration : Single or Dual Printerhead to fit all budgets.

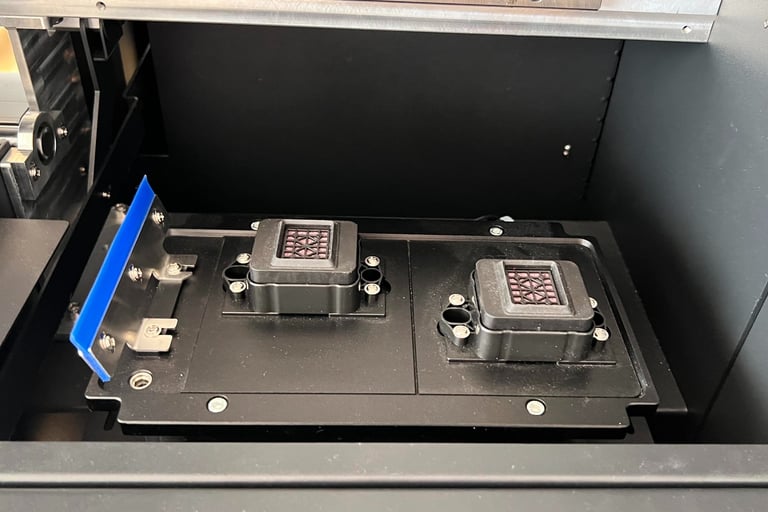

Dual-heads Configurations Available

High-Efficiency : 2 × i3200-E1

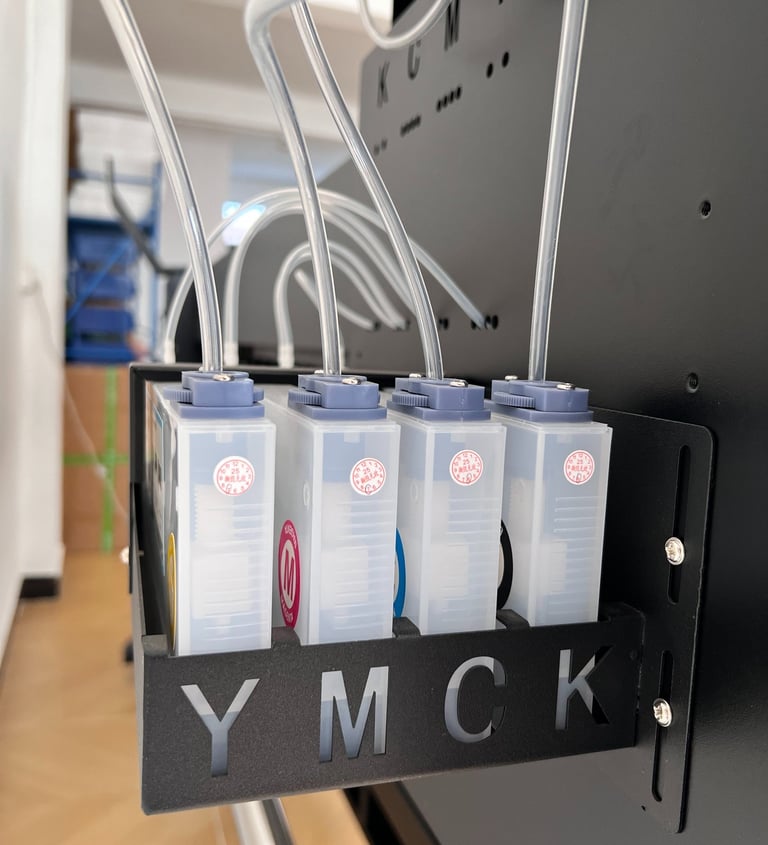

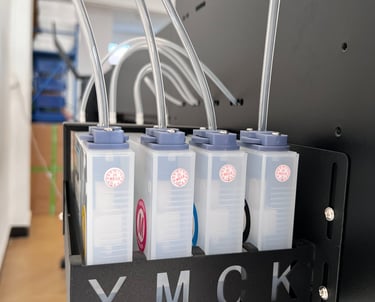

- Specs : 4 + 4 channels (2 rows) (C, M, Y, K)
- Native nozzle pitch : 300 npi (per row)
- Nozzle count per head : 2400 (300 × 2 rows × 4 channels)
- Speed : ~12–14 m²/hr*
- Resolution : 300 npi/row × 2 rows = 600 npi
  (up to ~1440 dpi*)
- lifespan : up to 24 months (heavy duty)**
- Cost : $$$$ → Higher investment, long-term advantage
- Sharper detail, fastest throughput, built for heavy production.

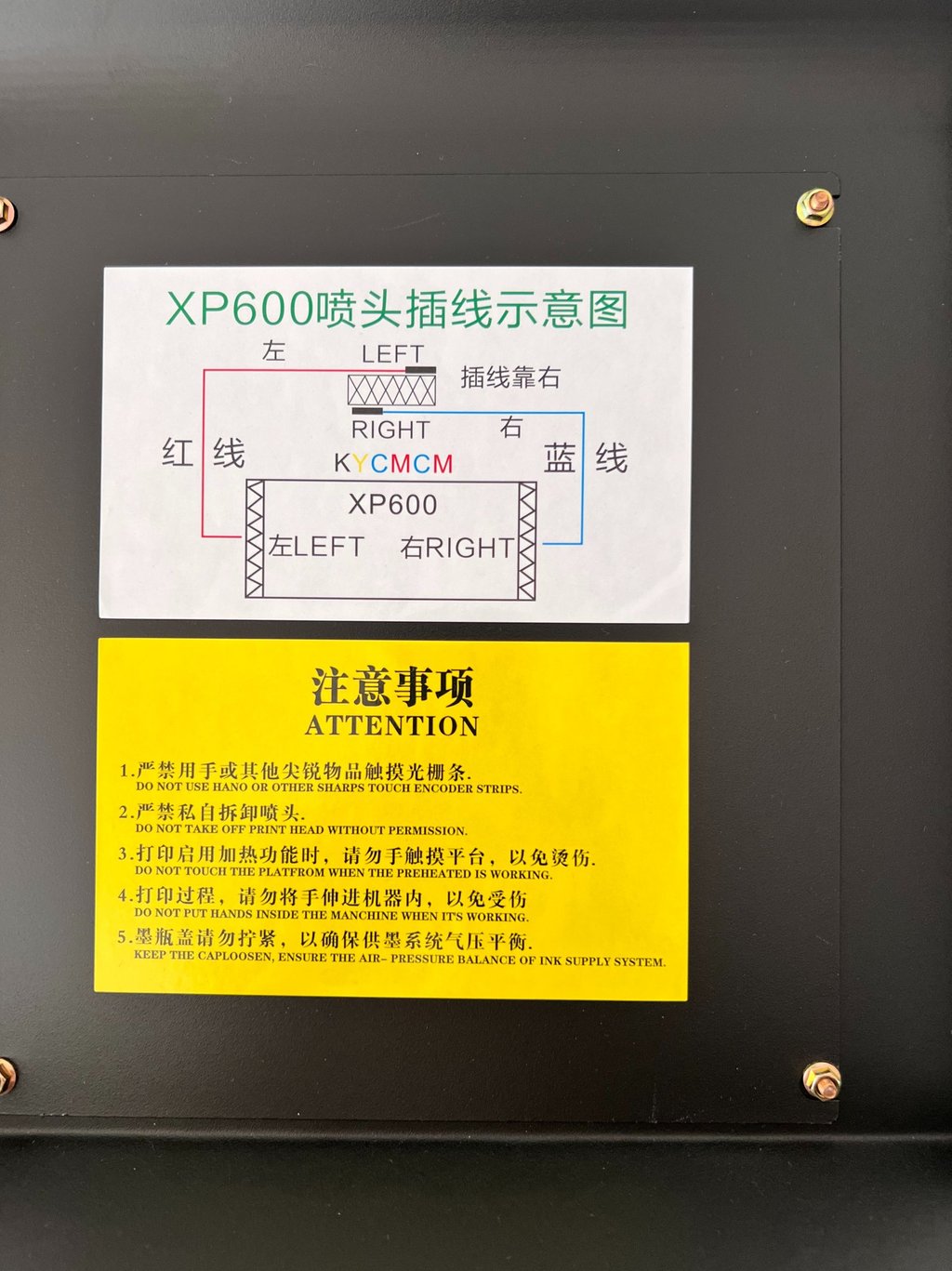

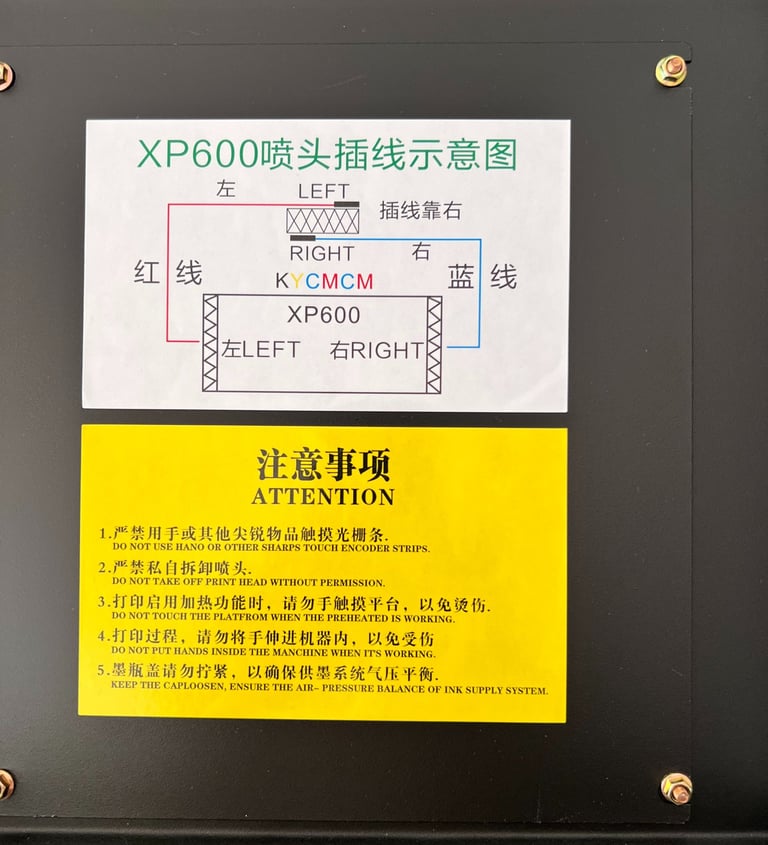

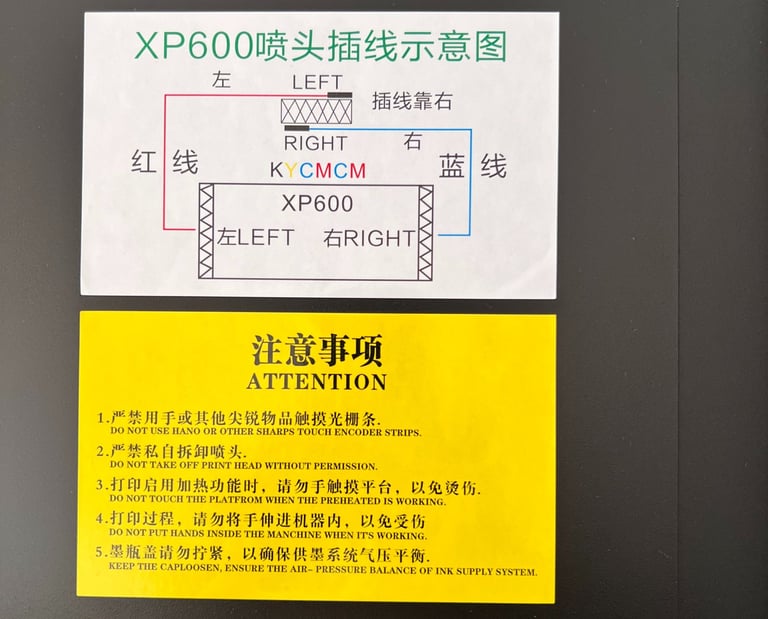

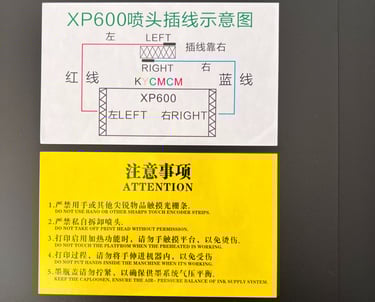

Budget-Friendly : 2 × XP600 (Epson DX11)
- Specs : Dual-heads 6 + 6 channels (K, Y, C, M, C, M)
- Native nozzle pitch : 180 npi (per row)
- Nozzle count per head: 1080 (6 × 180)
- Speed : ~6–8 m²/hr*
- Resolution : 180 npi/row × 2 rows = 360 npi
  (up to ~720 dpi *)
- lifespan : up to 12 months (lighter duty)**
- Cost : $ → Lowest upfront, fastest payback
- Easy to maintain, steady daily orders.
Essential : Single-Head Configuration
- Speed (XP600) : ~3–4 m²/hr
- Speed (i3200-E1) : ~6–7 m²/hr
- Resolution : same as dual-head (no compromise)

*Measured in dual-head CMYK 2-pass mode.
**Longevity depends on ink quality, consistent maintenance, and operator care.

Details

Printing Width : 180, 190 240, 320cm
Media : Transfer Paper, Heat Transfer Vinyl (HTV), SAV Sticker Rolls, PET Films, Lamination Films
Interface : USB/Ethernet
Nominal Voltage : A/C 220V 50/60hz
Rated Current : 20A
Drying Temperature : 140~150℃
Gross Weight : 245 kgs
Dimension : L295 x W72 x 75 cm
Shipping Dimension : L295 x W72x H75 cm = 1.59 CBM
Shipping Weight : 245 kgs
